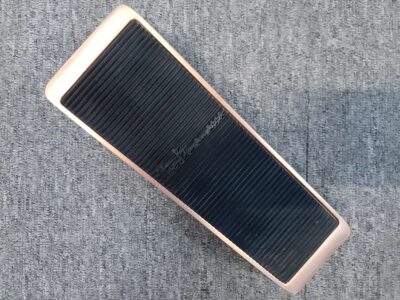

That’s why we at Dunlop worked with Joe to develop the Joe Bonamassa Signature Cry Baby, specially engineered to fit in perfectly with Joe’s system, from the way it looks to the way it sounds. On the outside, it sports a classy copper top with a smooth-finish black body.
On the inside, it features large, vintage-style thru-hole components, a Halo inductor (for added harmonic content), an output buffer (to prevent impedance imbalance with vintage fuzz pedals), and a switch for true-bypass or non-true-bypass operation (Joe prefers non-True Bypass as it darkens the high end).
With its huge vocal sweep range, this is one of the most expressive Cry Babys ever, and it’s Joe’s tool of choice to accentuate every soulful bend and bluesy wail. The first pedal I ever purchased was a Cry Baby, 25 years ago, he says. I am so honored to have my name on this pedal and hope it brings you as much fun as it brings me every night on stage.
Specifications
Impedance
- Input 800 kΩ
- Output 10 kΩ
Filter Parameter
- Low Pass 290 Hz ~ 310 Hz
- High Pass 1400 kHz ~ 1510 kHz
Maximum Level
- Input -8.0 dBV
- Output +10 dBV
Maximum Gain
- Heel Down
- +16.5 dB @ 1400 Hz ~ 1510 Hz
- Toe Down
- +16.5 dB @ 290 Hz ~ 310 Hz
Current Draw: 1.35µA
